DIXON VALVE

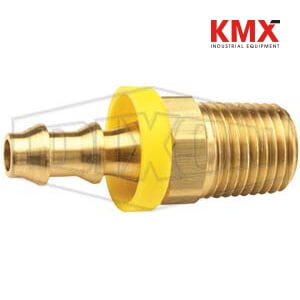

DIXON VALVE 2720406C Male NPT x Push-on Hose Barb
* Referential image

DIXON VALVE
MALE NPT X PUSH-ON HOSE BARB
SKU :  2745 BRAND : DIXON VALVE MODEL :  2720406C
Specifications:
Number of Barbs: 2
Barb Length:.77"

Construction:
Dryseal

Installation
Assembly Instructions:
1. Trim hose end with smooth square cut.
2. Lubricate either push-on fitting, hose or both.
3. Insert push-on fitting into hose until first barb is in hose.
4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.

Instructions
Disassembly instructions:
1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

Note:
No hose clamps or ferrules are needed

Safety notes:
Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
PDF
TECHNICAL SPECIFICATIONS
1Factory Part Number2720406C
2Component MaterialYellow Plastic Cap
3Weight Lb0.0560
4Hex11/16"
5Hose ID1/4"
6Length1.61"
7Male ThreadNPTF
8Male Thread Size3/8"-18
9MaterialBrass
10Pressure Rating350 PSI
11Temperature Range-40°F to 150°F
** Some features may vary without prior notice. Sale subject to inventory availability
